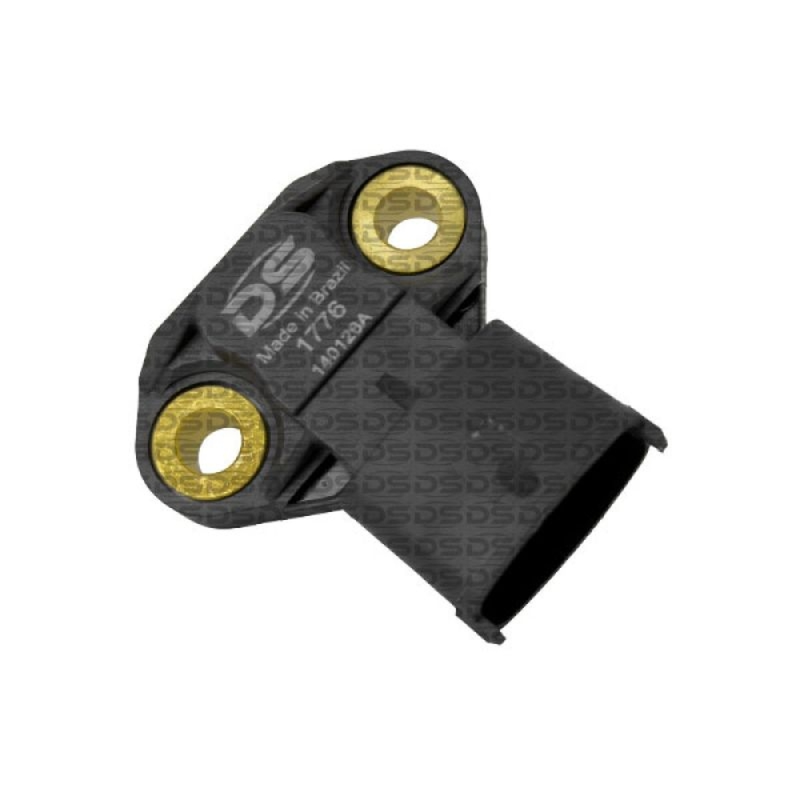

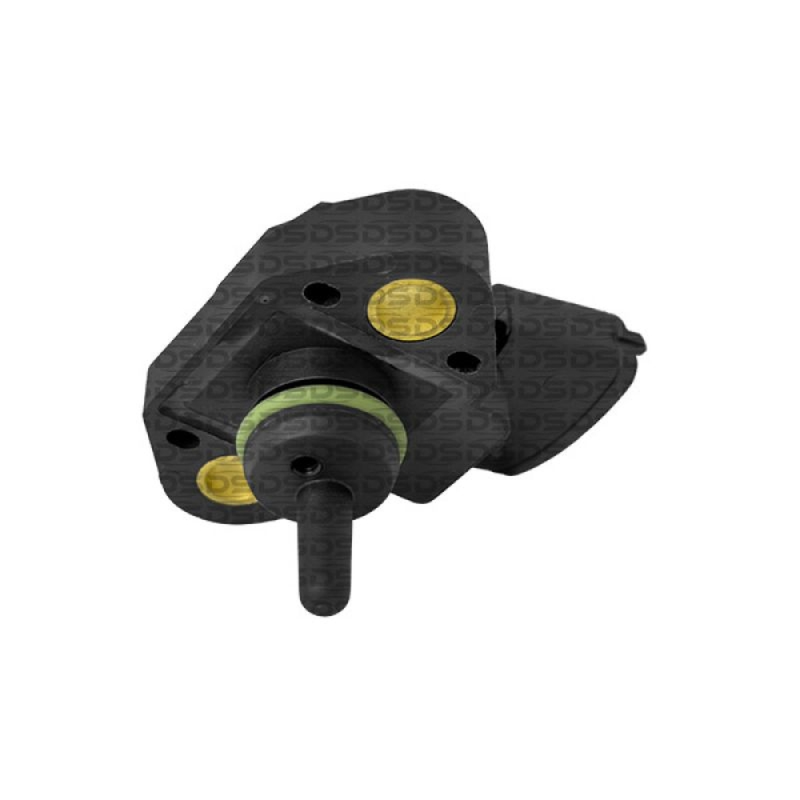

Sensor de Pressão Absoluta (MAP)

Código DS:1776

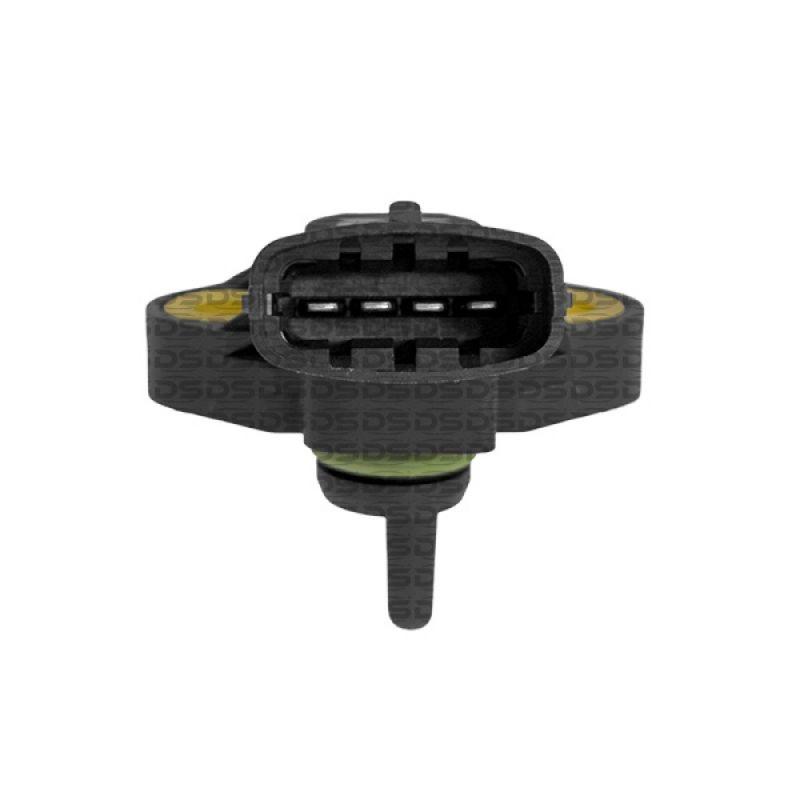

Quantidade de terminais: 4 Und


BOSCH: 0281002420
BOSCH: 0281002246
CUMMINS: 4893926
FORD ORIGINAL: BG5X9D290BA
IVECO ORIGINAL: 504358206
MANN-FILTER: 51274210156
MANN-FILTER: 51094137002
MERCEDES-BENZ ORIGINAL: A0041532028
MTE-THOMSON: 71085
MWM: 961200690014
VOLKSWAGEN ORIGINAL: 2R0906051B
VOLKSWAGEN ORIGINAL: 2R0906051F

Montadora	Modelo	Motor	Combustível	Ano
Agrale	8500	4.8 L 8V SOHV L4	Diesel	05 > 11
Agrale	9200	4.8 L 8V SOHV L4	Diesel	05 > 11
Agrale	Ma 7.5E	4.8 L 8V SOHV L4	Diesel	05 > 05
Agrale	Ma 8.5	4.8 L 8V SOHV L4	Diesel	05 > 11
Agrale	Ma 8.5E	4.8 L 8V SOHV L4	Diesel	05 > 11
Agrale	Ma 9.2 E	3.8 L 16V SOHV L4	Diesel	05 > 11
Agrale	Ma 9.2	4.3 L 8V SOHV L4	Diesel	05 > 07
Agrale	Ma 9.2E	4.8 L 8V SOHV L4	Diesel	05 > 11
Ford	Cargo	10 L 24V DOHC L6	Diesel	13 > 19
Ford	Cargo	3.9 L 16V SOHV L4	Diesel	06 > 12
Ford	Cargo	3.9 L 16V SOHV L4	Diesel	05 > 12
Ford	Cargo	3.9 L 16V SOHV L4	Diesel	14 > 19
Ford	Cargo	3.9 L 16V SOHV L4	Diesel	05 > 11
Ford	Cargo	3.9 L 8V SOHV L4	Diesel	02 > 06
Ford	Cargo	3.9 L 8V SOHV L4	Diesel	07 > 12
Ford	Cargo	3.9 L 8V SOHV L4	Diesel	00 > 05
Ford	Cargo	3.9 L 8V SOHV L4	Diesel	96 > 00
Ford	Cargo	4.5 L 16V SOHV L4	Diesel	14 > 19
Ford	Cargo	4.5 L 16V SOHV L4	Diesel	16 > 19
Ford	Cargo	4.5 L 16V SOHV L4	Diesel	12 > 13
Ford	Cargo	4.5 L 16V SOHV L4	Diesel	12 > 19
Ford	Cargo	4.5 L 16V SOHV L4	Diesel	12 > 17
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	02 > 06
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	92 > 95
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	94 > 02
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	85 > 86
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	98 > 06
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	99 > 02
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	93 > 95
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	95 > 02
Ford	Cargo	5.9 L 12V SOHV L6	Diesel	03 > 06
Ford	Cargo	5.9 L 24V SOHV L6	Diesel	06 > 11
Ford	Cargo	5.9 L 24V SOHV L6	Diesel	05 > 11
Ford	Cargo	5.9 L 24V SOHV L6	Diesel	10 > 11
Ford	Cargo	6.0 L 12V SOHV L6	Diesel	83 > 87
Ford	Cargo	6.6 L 12V SOHV L6	Diesel	86 > 92
Ford	Cargo	6.6 L 12V SOHV L6	Diesel	84 > 86
Ford	Cargo	6.6 L 12V SOHV L6	Diesel	90 > 92
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	14 > 18
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	16 > 19
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	12 > 19
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	18 > 19
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	16 > 18
Ford	Cargo	6.7 L 24V SOHV L6	Diesel	14 > 19
Ford	Cargo	7.8 L 12V SOHC L6	Diesel	91 > 91
Ford	Cargo	7.8 L 12V SOHV L6	Diesel	91 > 91
Ford	Cargo	7.8 L 12V SOHV L6	Diesel	90 > 91
Ford	Cargo	7.8 L 12V SOHV L6	Diesel	89 > 92
Ford	Cargo	7.8 L 24V SOHV L6	Diesel	91 > 91
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 02
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	05 > 06
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	93 > 02
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 00
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	01 > 06
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 93
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 96
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	95 > 02
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	02 > 05
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	92 > 97
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	99 > 11
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	02 > 06
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 06
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	03 > 06
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	97 > 02
Ford	Cargo	8.3 L 12V SOHV L6	Diesel	91 > 94
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	08 > 11
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	06 > 07
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	07 > 11
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	11 > 11
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	06 > 11
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	10 > 11
Ford	Cargo	8.3 L 24V SOHV L6	Diesel	09 > 11
Ford	Cargo	8.9 L 24V SOHV L6	Diesel	16 > 19
Ford	Cargo	8.9 L 24V SOHV L6	Diesel	11 > 19
Ford	Cargo	8.9 L 24V SOHV L6	Diesel	12 > 19
Iveco	Eurocargo	5,9 L 24V SOHV L6	Diesel	06 > 11
Iveco	Eurocargo	5.9 L 24V SOHC L6	Diesel	05 > 11
Iveco	Eurocargo	5.9 L 24V SOHV L6	Diesel	05 > 09
Iveco	Eurocargo	5.9 L 24V SOHV L6	Diesel	06 > 11
Iveco	Iveco Bus	5.9 L 24V SOHC L6	Diesel	06 > 08
Iveco	Stralis 330	8.7 L 24V SOHV L6	Diesel	12 > 15
Iveco	Stralis 360	8.7 L 24V SOHV L6	Diesel	12 > 15
Iveco	Stralis 440	12,9 L 24V SOHV L6	Diesel	12 > 15
Iveco	Stralis 440	12.9 L 24V SOHV L6	Diesel	12 > 15
Iveco	Stralis 480	12,9 L 24V SOHV L6	Diesel	11 > 17
Iveco	Trakker	12.9 L 24V SOHV L6	Diesel	06 > 06
Iveco	Trakker	13 L 24V SOHV L6	Diesel	12 > 17
Iveco	Trakker	13 L 24V SOHV L6	Diesel	04 > 06
Iveco	Trakker	13 L 24V SOHV L6	Diesel	06 > 06
Iveco	Vertis Hd	3.9 L 16V SOHV L4	Diesel	12 > 16
Iveco	Vertis	3.9 L 16V SOHV L4	Diesel	10 > 15
Iveco	Vertis	3.9 L 16V SOHV L4	Diesel	10 > 12
Man	Tgm	6.9L 24V DOHC L6	Diesel	16 > 26
Man	Tgx	12 L 24V DOHC L6	Diesel	15 > 26
Man	Tgx	12 L 24V DOHC L6	Diesel	11 > 17
Man	Tgx	12 L 24V DOHC L6	Diesel	09 > 15
Man	Tgx	12 L 24V DOHC L6	Diesel	12 > 18
Man	Tgx	12 L 24V DOHC L6	Diesel	13 > 26
Mercedes Benz	1215 C	4.3 L 12V SOHV L4	Diesel	99 > 04
Mercedes Benz	1718 M	4.3 L 12V SOHV L4	Diesel	01 > 05
Mercedes Benz	712 C	4.3 L 12V SOHV L4	Diesel	99 > 04
Mercedes Benz	914 C	4,3 L 12V SOHV L4	Diesel	99 > 04
Mercedes Benz	Accelo	4.3 L 12V SOHV L4	Diesel	03 > 05
Mercedes Benz	Atego	4.3 L 12V SOHV L4	Diesel	04 > 10
Mercedes Benz	L 1218 El	4.3 L 12V SOHV L4	Diesel	01 > 05
Mercedes Benz	L 1418 El	4.3 L 12V SOHV L4	Diesel	01 > 05
Mercedes Benz	Lo 914	4.3 L 12V SOHV L4	Diesel	99 > 04
Volkswagen	15.180 Eod	4.8 L 16V SOHV L4	Diesel	05 > 07
Volkswagen	15.180 Eod	4.8 L 8V SOHV L4	Diesel	04 > 07
Volkswagen	15.190 Eod	4.8 L 8V SOHV L4	Diesel	06 > 12
Volkswagen	17.210 Eod Tcae	7.2 L 12V SOHV L6	Diesel	04 > 06
Volkswagen	17.210 Od	6.5 L 12V SOHV L6	Diesel	04 > 05
Volkswagen	17.230 Eod	7.2 L 12V SOHV L6	Diesel	06 > 12
Volkswagen	17.260 Eot	7.2 L 12V SOHV L6	Diesel	04 > 12
Volkswagen	5.140 Eod	3.0 L 12V SOHC L4	Diesel	05 > 05
Volkswagen	8.150 Eod	3.0 L 12V SOHC L4	Diesel	06 > 12
Volkswagen	8.150 Eod	3.0 L 12V SOHC L4	Diesel	08 > 12
Volkswagen	8.150 Eod	3.9 L 16V SOHV L4	Diesel	04 > 11
Volkswagen	8.150 Eod	4.8 L 8V SOHV L4	Diesel	04 > 11
Volkswagen	8.150 Od	4.3 L 8V SOHV L4	Diesel	04 > 05
Volkswagen	8.150 Odc	3.9 L 16V SOHV L4	Diesel	04 > 05
Volkswagen	9.150 Eod	3.0 L 12V SOHC L4	Diesel	08 > 11
Volkswagen	9.150 Eod	3.9 L 16V SOHV L4	Diesel	11 > 12
Volkswagen	9.150 Eod	4.8 L 8V SOHV L4	Diesel	04 > 12
Volkswagen	9.150 Od	4.3 L 8V SOHV L4	Diesel	04 > 05
Volkswagen	9.150 Odc	3.9 L 16V SOHV L4	Diesel	04 > 07
Volkswagen	Constellation	4.8 L 8V SOHV L4	Diesel	06 > 11
Volkswagen	Constellation	6.9 L 24V DOHC L6	Diesel	08 > 13
Volkswagen	Constellation	7.1 L 12V SOHV L6	Diesel	08 > 12
Volkswagen	Constellation	7.2 L 12V SOHV L6	Diesel	08 > 11
Volkswagen	Constellation	7.2 L 12V SOHV L6	Diesel	06 > 14
Volkswagen	Delivery	3.0 L 12V SOHC L4	Diesel	05 > 11
Volkswagen	Delivery	3.9 L 16V SOHV L4	Diesel	10 > 11
Volkswagen	Worker	4.8 L 8V SOHV L4	Diesel	05 > 11
Volkswagen	Worker	6.5 L 12V SOHV L6	Diesel	06 > 11
Volkswagen	Worker	7.2 L 12V SOHV L6	Diesel	05 > 11
Volkswagen	Worker	7.2 L 12V SOHV L6	Diesel	06 > 11
Volvo	Vm 210 R	4.8 L 8V SOHV L4	Diesel	06 > 11
Volvo	Vm 260	7.2 L 12V SOHV L6	Diesel	06 > 11
Volvo	Vm 310	7.2 L 12V SOHV L6	Diesel	06 > 11

Suporte Técnico

Detalhes de Sensor de Pressão Absoluta (MAP)

O sensor de pressão absoluta (MAP) informa a unidade de comando eletrônico (UCE) a pressão absoluta medida dentro do coletor de admissão nos diversos regimes de funcionamento do motor.

O valor obtido é somado a informação da temperatura de ar. Com esses dados, o sistema identifica a massa de ar que esta sendo admitida, calcula o avanço da ignição e o tempo de abertura do bico injetor, buscando sempre a ideal relação ar/combustível. Nos veículos mais antigos, o sensor MAP está fixado próximo ao motor e está ligado ao coletor de admissão por meio de uma mangueira.

Nos veículos mais modernos, encontramos o sensor MAP integrado, cuja função é informar a pressão no coletor de admissão e a temperatura do ar. O sensor está parafusado diretamente sobre o coletor de admissão (não utiliza mangueira).
